    Straight Solid Carbide Shank For Interchangeable Milling Head With Large Length To Diameter Ratio

    Ask Lasest Price
    Brand Name : MMM
    Model Number : Various
    Certification : ISO 9001
    Price : USD
    Payment Terms : L/C, T/T
    Supply Ability : 3,000 PCS/Month
    Delivery Time : 5-15 Days
    • Product Details
    • Company Profile

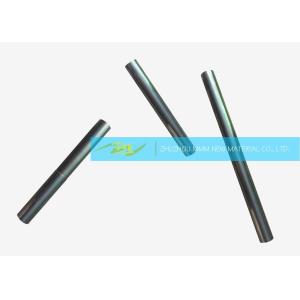

    Straight Solid Carbide Shank For Interchangeable Milling Head With Large Length To Diameter Ratio


    Solid Carbide Shank for Interchangeable Milling Head with Straight Shank / Step Straight Shank / Taper Straight Shank


    Feature Advantage:

    • Precision ground thread for reliable connection.
    • Greatly improve insert life.
    • Can be used with a variety of milling interchangeable heads.
    • Solid Carbide Shank for interchangeable Head is designed to solve the problem of large length and diameter ratio tools and high vibration resistance requirements in milling.
    • Special cemented carbide material with uniform internal material, high strength and high concentricity after grinding.
    • Carbide material can be used to achieve long suspension of the tool, effectively reducing vibration.

    • Type:
    TypeDLD1M
    MFT-08-100-M481008M4
    MFT-10-100-M5/M61010010M5/M6
    MFT-10-150-M5/M61015010M5/M6
    MFT-12-100-M61210012M6
    MFT-12-150-M61215012M6
    MFT-15-100-M81510015M8
    MFT-15-150-M81515015M8
    MFT-15-200-M81520015M8
    MFT-15.6-150-M815.615015.6M8
    MFT-15.6-200-M815.620015.6M8
    MFT-15.6-250-M815.625015.6M8
    MFT-16-100-M81610016M8
    MFT-16-150-M81615016M8
    MFT-16-200-M81620016M8
    MFT-16-250-M81625016M8
    MFT-16-300-M81630016M8
    MFT-19-150-M101915019M10
    MFT-19-200-M101920019M10
    MFT-19-250-M101925019M10
    MFT-20-100-M102010020M10
    MFT-20-150-M102015020M10
    MFT-20-200-M102020020M10
    MFT-20-250-M102025020M10
    MFT-20-300-M102030020M10
    MFT-24-150-M122415024M12
    MFT-24-200-M122420024M12
    MFT-24-250-M122425024M12
    MFT-24-300-M122430024M12
    MFT-25-150-M122515025M12
    MFT-25-200-M122520025M12
    MFT-25-250-M122525025M12
    MFT-25-300-M122530025M12
    MFT-32-150-M163215032M16
    MFT-32-200-M163220032M16
    MFT-32-250-M163225032M16
    MFT-32-300-M163230032M16
    MFT-32-350-M163235032M16
    MFT-32-400-M163240032M16

    TypeDD1LL1M
    MFT16-85-120-M81615.612085M8
    MFT16-95-150-M81615.615095M8
    MFT16-145-200-M81615.6200145M8
    MFT20-40-100-M102019.610040M10
    MFT20-90-150-M102019.615090M10
    MFT20-140-200-M102019.6200140M10
    MFT25-40-100-M122524.610040M12
    MFT25-85-150-M122524.615085M12
    MFT25-135-200-M122524.6200135M12

    TypeDD1LL1M
    MFT10-50-150-M6109.515050M6
    MFT12-50-150-M61211.515050M6
    MFT16-50-150-M81615.515050M8
    MFT16-50-200-M81615.520050M8
    MFT16-70-250-M81615.525070M8
    MFT16-85-120-M8
